Electric Brewery - Part3

Posted 2/28/2017

Assembling and wiring g and wiring

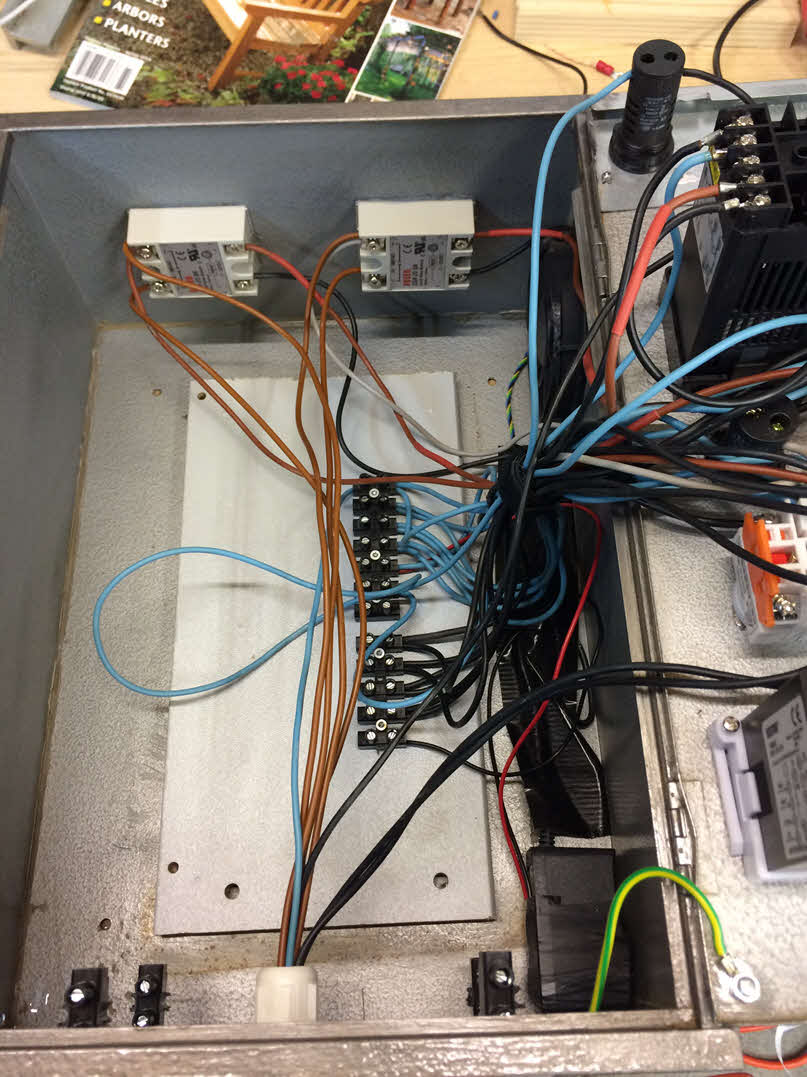

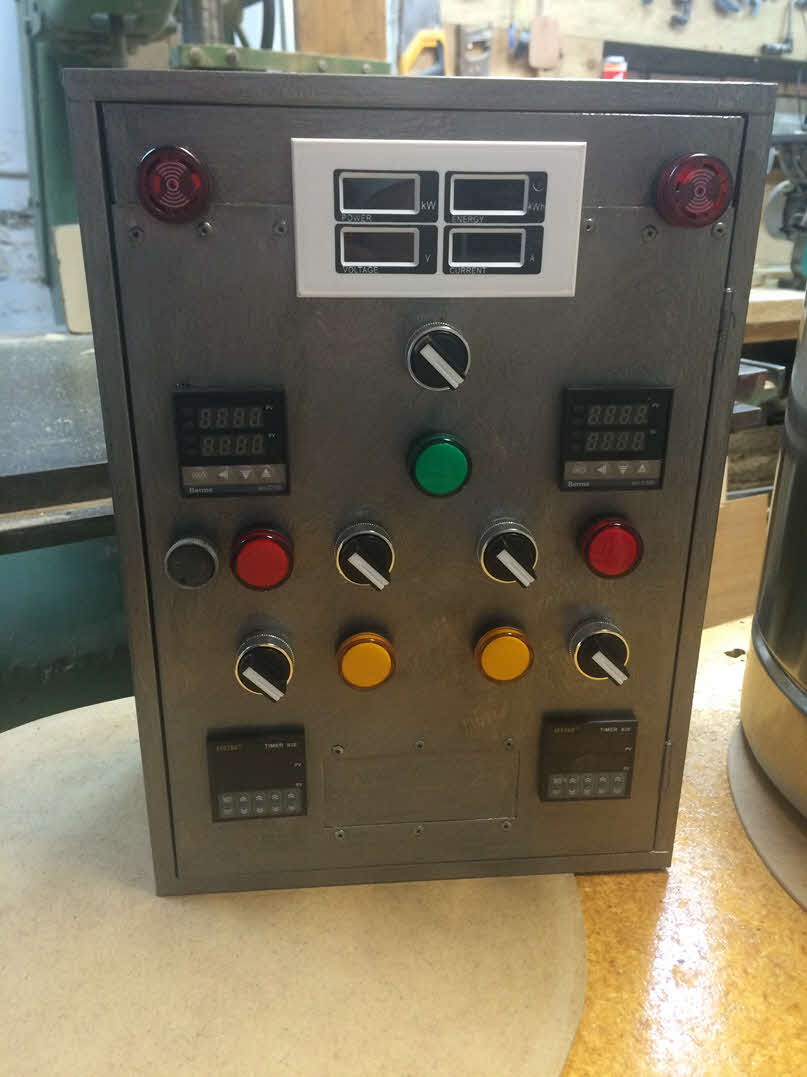

Once the holes were drilled, the "control panel" (Mailbox) was painted and the components assembled.

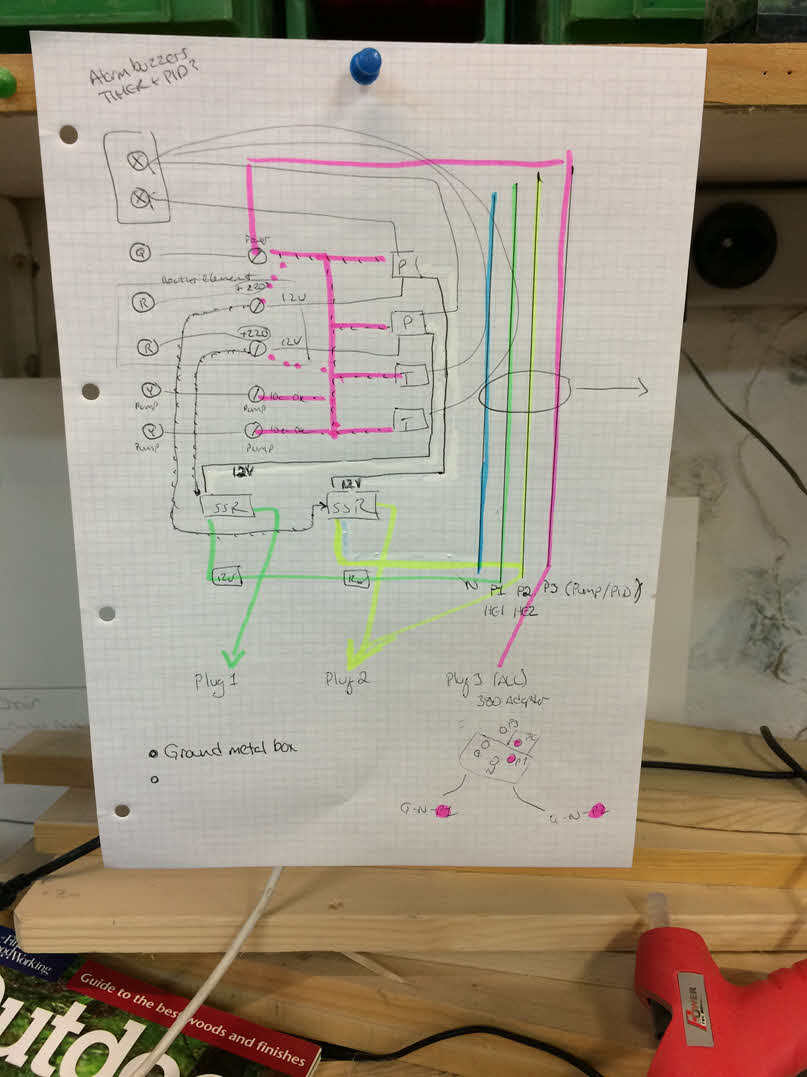

Next, I prepared a wiring diagram and started to put all of the components together.

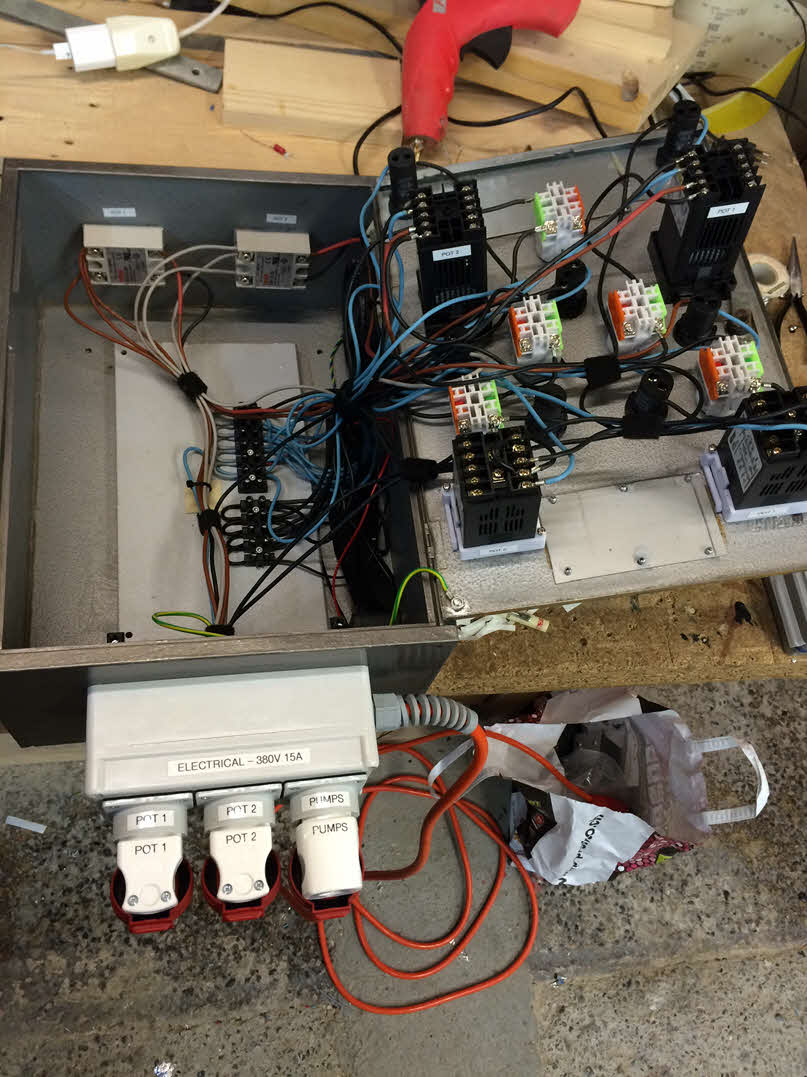

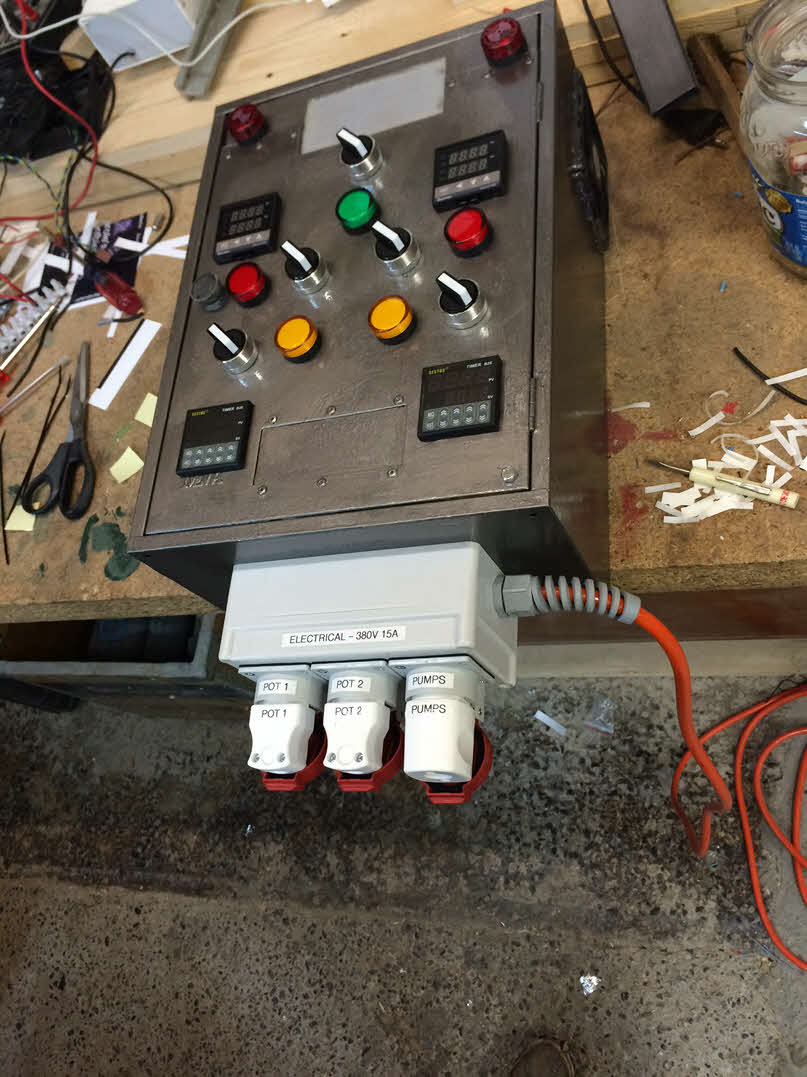

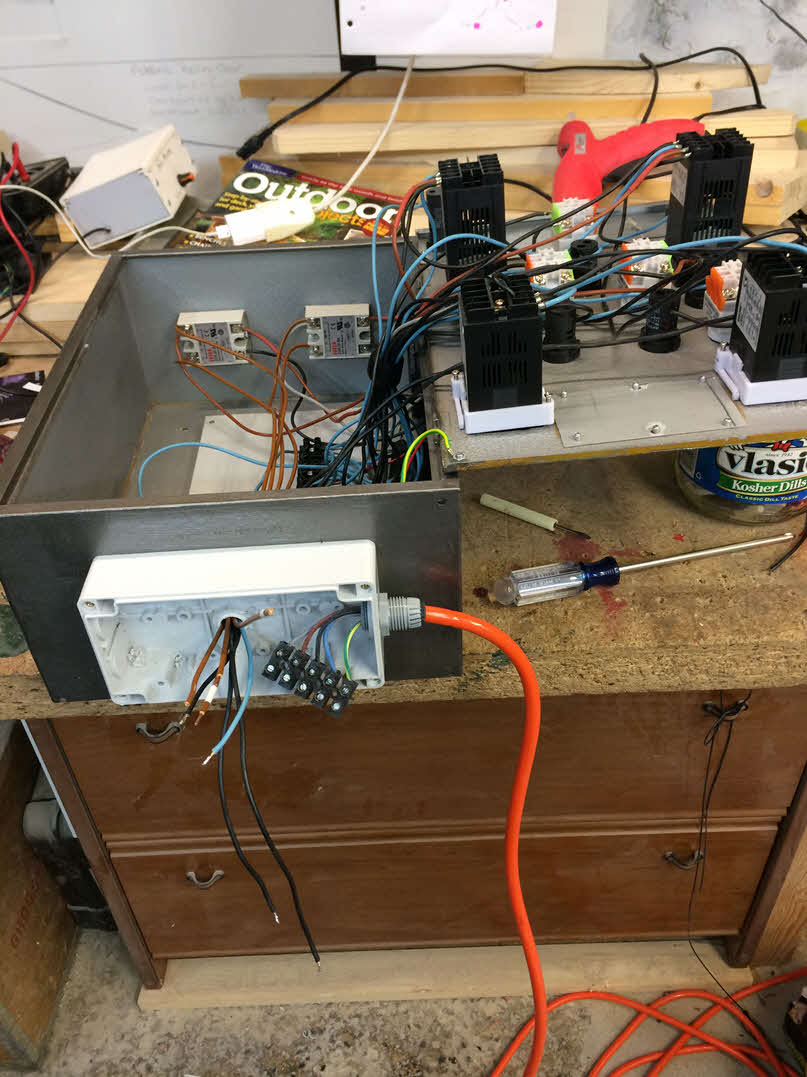

Lastly, I connected the power distributor (25A, 380V power strip)
